Resdential TG75SW Series
Commercila TG100/120/150SW Series
SLIDING WINDOWS
Technical
Data
Systems comply with Australian Standard AS2047
Glazing in accordance with AS1288
10 Years Warranty
Series
Ranges
Frame Size
Tracks
Hardware
Screens
Install
Glass
Mullion Type
Surface Finish
Wers Data
TG100 SW
Commercial
.jpg)
TG120 SW
Commercial
.jpg)
TG150 SW
Commercial
.jpg)
75mm
non-thermal break
2 tracks
D-lock
I-lock
Fiber
/
Fin
Min 5mm
Max 6+12a+6mm
Flush
Standard
Powder Coat
or Andoized
U-Value range:
3.30~6.60
SHGC range:
0.26~0.61
TG75 SW
Resdential
.jpg)
100mm
non-thermal break
2 tracks
D-lock
I-lock
/
/
Sub heads
Sills&Jambs
Min 5mm
Max 6+12a+6mm
Flush
Standard
Powder Coat
or Andoized
U-Value range:
3.30~6.60
SHGC range:
0.26~0.61
120mm
Thermal break
3 tracks
D-lock
I-lock
Fiber & Barrier
Stainless steel
Sub heads
Sills&Jambs
Min 5mm
Max 6+12a+6mm
Standard
Heavy Duty
Powder Coat
or Andoized
U-Value range:
3.30~6.60
SHGC range:
0.26~0.61
150mm
non-thermal break
3 tracks
D-lock
I-lock
Fiber & Barrier
Stainless steel
Sub heads
Sills&Jambs
Min 5mm
Max 6+12+6mm
Standard
Heavy Duty
Powder Coat
or Andoized
U-Value range:
3.30~6.60
SHGC range:
0.26~0.61
Hardware
Options

D-lock

I-lock
Colour
Options
Stocks:Silver / Monument / White/ Black
Customized: Standard Dulux or Akzol colour optional. Warranty:5/10/15yrs optional.

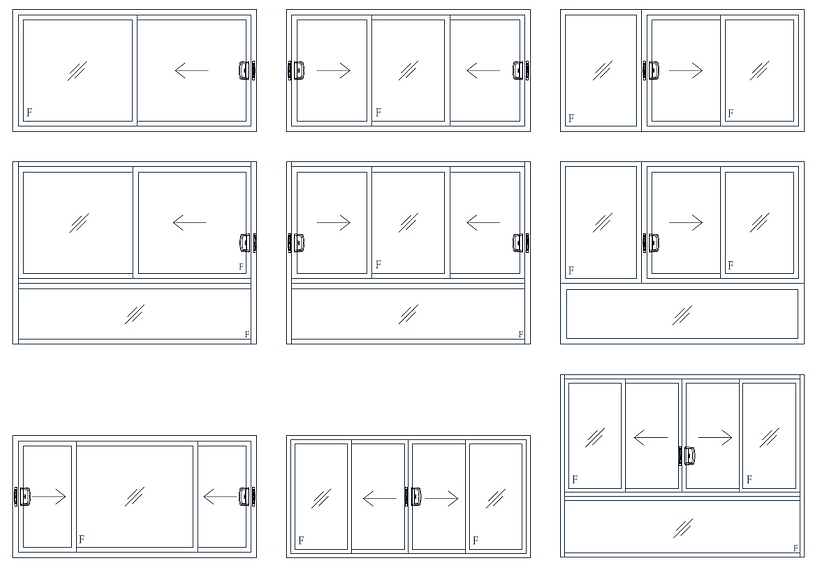

Example
Configur-
ations
